Automatic Carton Packing Line

Introduction:

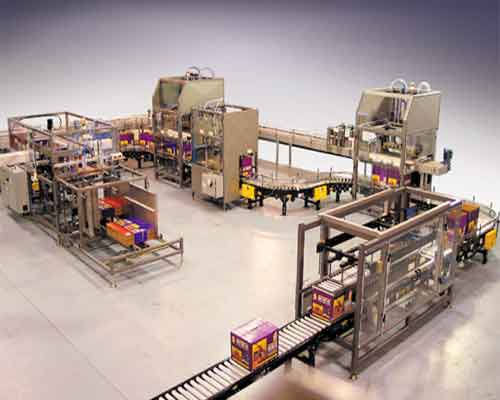

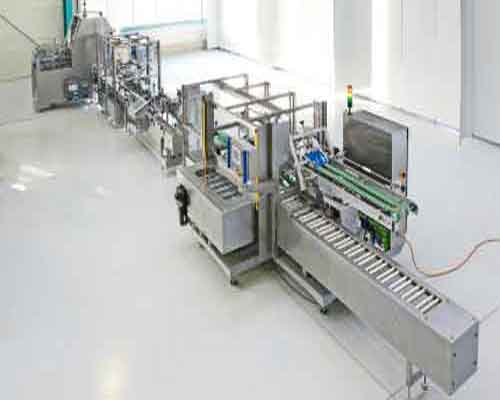

The carton packing lines consist of carton erector & bottom sealer, automatic carton sealer, automatic strapping machine, 90 degree push conveyor and conveying frame, which has the function of continuous automatic carton open-bottom seal-fill-upped seal and multi-belt strapping, and it not only takes up less room but also reduces the packing cost as well. It is fully automatic control and reliable working, convenient operation and simple maintenance while, all machine can be used separately.

Machine Working Flow:

Automatic Carton Erector and Sealing Bottom----------- Into Automatic Taping Machine. To complete ‘——”shape taping---------- After complete '--'shape taping, into Automatic carton corner side machine to start four side of taping (sealing)---------- After complete carton taping, into automatic strapping machine. The automatic carton packing line finish

Application:

Automatic carton packaging system is applied to carton rear packing for all objects in different sizes.
Automatic carton packaging lines includes the following equipments according to customer request:
A. Automatic Case Erector
B. Line-up Machine
C. Automatic Encasing Machine
D. Auto Flap Carton Sealer
E. Ink Jet Printer or Carton Printer
F. Unmanned Automatic Strapping Machine
G. Carton Edges Sealer
H. Robot
I. Pallet Supplying and Conveyor
J. Vertical Pallet Strapping Machine with Top Seal
K. Automatic Pallet Stretch Wrapper

Features:

• Imported pneumatic and electric components ensure trouble-free operation for a long time
• Adjust the height and the width for different size of cartons automatically in several seconds
• Easy operation and simple maintenance
• Adopts advanced pneumatic control system
• Adopts photo electricity induction control system
• Guarantee the adhesive tape is flat, tight and beautiful, won't damage the carton
• Cutter Safety system to prevent hands from stabbed by the cutter
• Fold the top covers automatically, side belts driben top bottom sealing
• For carton's four sides and corners sealing
• Suitable for complicated production environment
• Heavy duty built, both steel and stainless steel types
