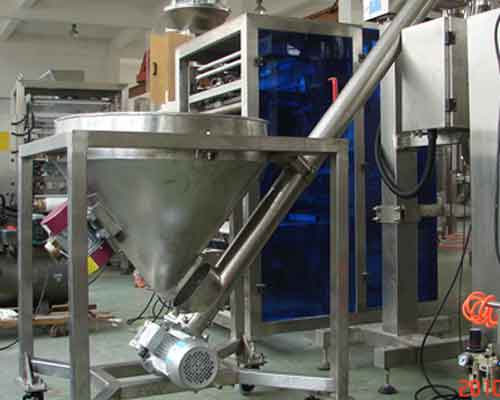

Automatic Bag-Given Powder Packing Machine

Automatic bag-given powder packing machine adopts advanced PLC from Germany Siemens, mate with touch screen and electric control system, the man-machine interface is friendly....Read more




This bag-given powder packaging machine with screw elevator being suitable for packing milk powder, coffee powder, spice powder, chilli powder, etc.


1. SIMENS PLC control.
2. Colorful touch screen with different languages.
3. Auto detecting function, no filling and heating without pouch opening or opening not thoroughly so that pouch can be reused without wasting.
4. Auto alarming when air pressure not normal or fault of heating pipe.
5. Bag width adjusting controlled by motor, cramp width adjusted by button putting.
6. Plexiglass safety gate protecting operators.
7. Imported plastic bearings without oil refilling to avoid pollution to products.
8. Oil-free vacuum pump avoiding contamination of the production environment.
9. Specially designed zipper opening mechanism avoiding pouch mouth from deforming or damaging.
10. Low pouch wasting, good sealing.
11. All contacting parts with products of our bag-given powder filling machine and pouch are stainless steel, meeting international food safety standard.
12. bag-given packing machine suitable for stand-up bag, spout bag , flat bag etc.

Main Advantages:

  • To reduce production cost and administration cost. One packing line can deduct 4-10 workers. Investment cost can return with 1-2 years.
  • The quality of automatic bag-given machine is improved. It achieves uniform standard from its appearance or packaging quality.
  • To reduce the defect rate, qualified product rate reaches 99.5% to avoid artificial packaging waste.
  • To improve health standard. The packaging process without direct contact with people to avoid man-made pollution.

Work flow:

1,Bag taken
2,Date coding
3,Bag opening
4,Material filling and vibrate
5,Heating sealing
6,Forming and output

Technique parameter:

Model YY-200-G
Pouch style Flat pouch, stand-up pouch, zipper pouch, spout pouch, etc.
Pouch material PE, PP, composite film, etc.
Pouch size L:100-350mm W:100-210mm (customized)
Filling range 100-3000g(customized) (need changing screw for different weight range)
Packing speed 10-60 pouch/min
Voltage 380V 3phase 50/60HZ(customized for 110V, 220V, 415V, 480V, etc.)
Power 4.5kW
Air consumption 0.6 m3/min

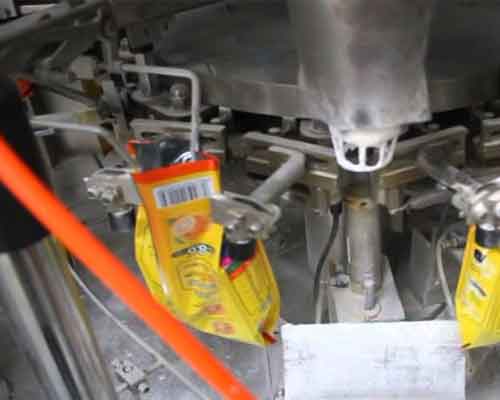

bag given machine detail
milk powder bag given machine
Automatic Bag-Given Powder Packing Machine
