Four Sides Sealing Powder Packing Machine

Four side sealing powder packing machine adopts CPU to control each function. The double channel temperature of the horizontal and vertical is controlled by intelligent temperature controlling device....Read more



Four side sealing powder packing machinery adopts correcting system controlled by microcomputer. Owing to a response signal is handle and pass through Microcomputer it can accomplish whole set to synchronization, sack length, position fixing, voluntarily follow the tracks of light-mark and voluntarily diagnose trouble and show to screen.
This powder packaging machinery can automatically complete a series of processes such as bag making, measuring, filling, inflating, counting, sealing, code printing, material giving, stopping in certain quantity, fixed-bag cutting and same cutting.


Automatic powder pouch packing machinery is suitable for packing non sticky, bulk or granular material, such as medical pills food Stuffs, plant seeds, washing powder, coffee, sugar, desiccant etc The integrated processes of bag making, measuring filling, sealing cutting, counting and hot pressing codes can be done automatically.


1.  All stainless steel cover meets to GMP standard.
2.  Powdery packing machine equipped with antipollution and dustproof device.
3.  Automatic adjustment of pouch size and filling range.
4.  Photocell controller is easy to manipulate.
5.  The horizontal sealing uses high temperature resistant bearing which will ensure the continuous operation of the machine without filling the oil regularly.
6.  The operation facility is controlled by American Intel computer, all function is displayed with digital screen.
7.  Minimum sealing temperature variation employs PID temperature; the tolerance is controlled by ± 1%.
8.  Sealing part: Roller spends process is special designed and the effect of sealing is very well.
9.  There is an easy open system on the powder filling machinery.
10. Packing material include several kinds of heat seal lamination such as PET/plated AL/PE, PET/PE, PAPER/PE, NYLON etc.


Model YY-G1 YY-G2 YY-G3
Filling range 1-10ml 10-50ml 50-100ml
Sealing way 4 side sealing 4 side sealing 4 side sealing
Bag length 30-80mm 30-120mm 30-150mm
Bag width 30-50mm 40-65mm 40-100mm
Packing speed 30-50 bags/min 30-50 bags/min 20-40 bags/min
Applicable film PET/AL/PE PET/PE NY/AL/PE NY/PE
Max width of
film roll
Power supply 220V/380V, 50/60HZ, 2.0Kw
Dimension 800*760*1700mm 800*760*1700mm 950*840*1900mm
Weight 240kg 240kg 280kg

Optional spare parts:

1. Air compressor
2. Finished product conveyor
3. Check weigher
4. Meter detector
5. Nitrogen-making machine

Optional function devices

1. Hole punch device
2. Tear notch device
3. Linking bag control device
4. Air exhaust device
5. Nitrogen inflation device

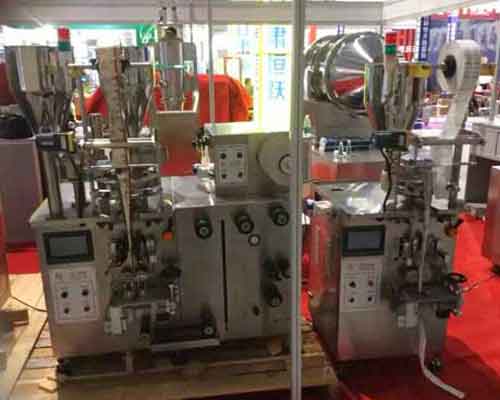

powder bag packing machine detail
 curry powder packing machine
Four Sides Sealing Powder Packing Machine
