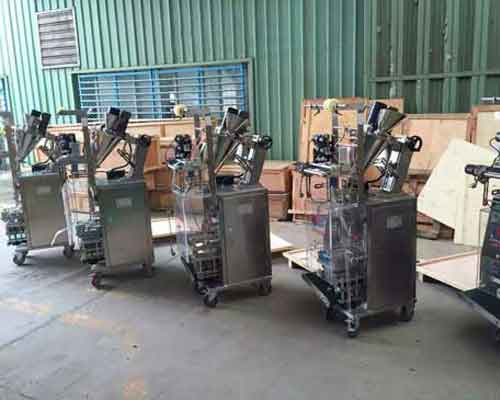

Three Sides Sealing Powder Packing Machine

VIDEO

Introduction

Application

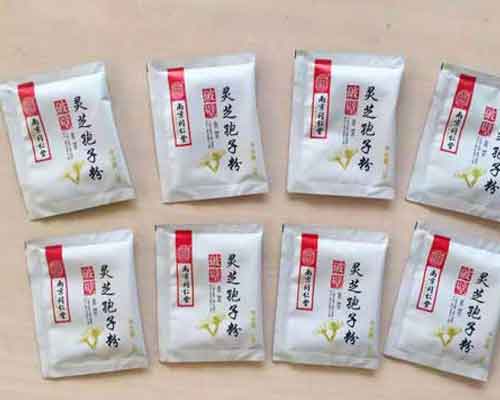

Automatic pouch powder packing machine is widely used for packing powdery material with 120-400 mesh. Such as food additives, milk powder, albumen powder, herbal powder, tea powder, masks powder, etc.

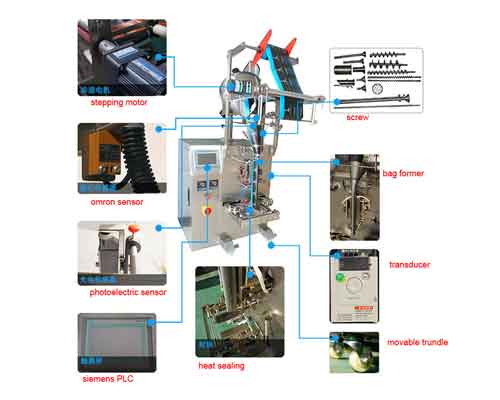

Features

1. This auto powder packaging machine adopts the advanced PLC control system, touch screen in English, and automatic completion of measuring, bag making, filling, sealing, cutting and printing codes.
2. Adopts the stainless steel 201 for the machine's mainframe, and stainless steel 304 for the parts touching supplies, which has a very good effect of anti-rusting, so guarantee the products clean and sanitary, and also greatly prolong the machine's life-span.
3. With the function of auto filling, measuring, bag forming, sealing and cutting. Bag-making system adopts step motor with high precision (error is less than 1mm).
4. Controller adopts English displaying, can see the working conditions directly.
5. Heating sealer with 3 sides of heating control, each sealing side temperature can be adjusted separately with good heat-balance to ensure the seal in good quality, suit for a variety of packaging materials.
6. There is a intelligent photoelectric controller system on powder packing machines.
7. Good visibility with side-open protective platens, operate safely.
8. Metering screw is drived by step motor, so that can get higher repeat precision.
9. This powder filling machine adopts the newest hopper sets, easy to adjust and clean, no need adjust again after clean, so that can improve working efficiency.
10. Ribbon printer is addable according to customer needs, which can print one to three lines letter, date of produce and batch number.

Specification

Optional spare parts:

• 1. Air compressor
• 2. Finished product conveyor
• 3. Check weigher
• 4. Meter detector
• 5. Nitrogen-making machine

Optional function devices

1. Hole punch device
2. Tear notch device
3. Linking bag control device
4. Air exhaust device
5. Nitrogen inflation device
6. Liquid pump device for packing liquid material
