The machine is high technical equipment which successfully developed and designed by introducing into advanced overseas technology, with features of fair structure, full function, easy operation, accurate filling, stable running,etc....Read more
plastic tube fillingand tail sealing machine,Tube Filling and Sealing Machine
VIDEO
Introduction
Application

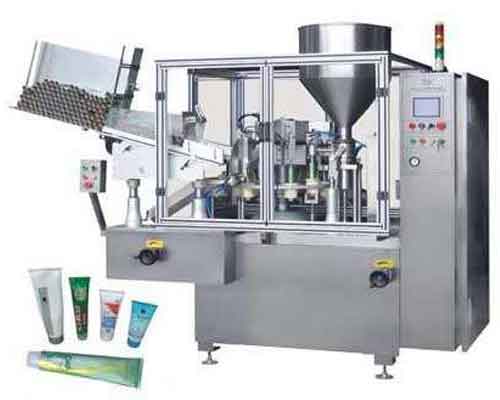

GNF-30 tube filling and sealing machine is suitable to filling and sealing of plastic and aluminum plastic composite tube for medicines, food, cosmetics and daily chemical products industry, etc.Feature

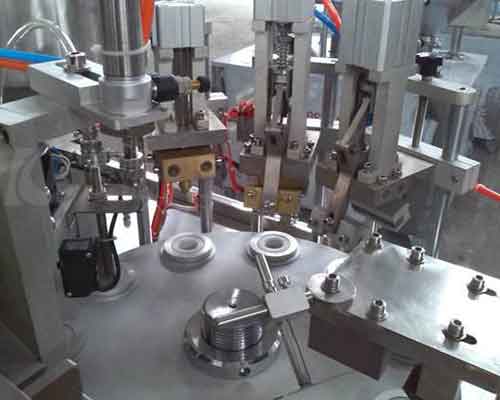

A、It is suitable to filling and sealing of plastic and aluminum plastic composite tube for medicines, food, cosmetics and daily chemical products industry, etc. It accurately fills pasty and viscous liquid into tube and run the follow-up process of hot blast heating, sealing, printing batch number and date of manufacture, etc.B、It owns advantages of compact structure, automatic tube feeding and full-closed drive system.
C、CAOS (completely automatic operating system) supports the entire process: tube feeding, tube washing, positioning, filling, hot melting, sealing, printing, reconditioning and final product.
D、Tube feeding and washing is finished by pneumatic mode, which is accuracy and reliable.

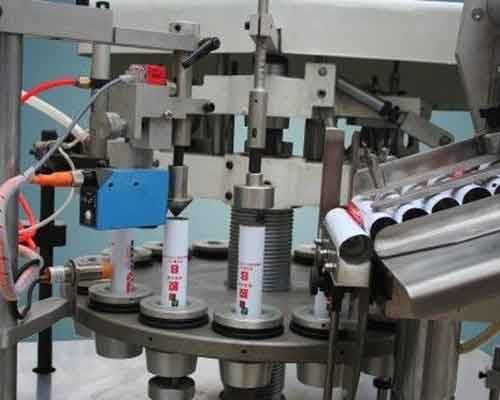

E、Automatic positioning is supported by photoelectric sensor. The rotary tube mould is equipped with sensor positioning control device.
F、It is suitable for multi-standard large caliber tube filling production.
G、It owns intelligent temperature control and cooling system, which is easy to handle.
H、All parts contacted with raw material are made of 316L stainless steel. It completely conforms to the GMP standard.
I、Running speed is controlled and adjusted by frequency converter.
J、Rotary table height could be directly adjusted.
K、Tube filling volume is easy to be adjusted by hand wheel.
L、The safety device is functioned as overload protection, shutdown while door opening, no filling without tube feeding.
Technical parameter
- Speed: 0-25 tube/min 20-60 tube/min
- Tube volume: 5ml-250ml/tube (customized)
- Accuracy: ≤±1%
- Filling capacity: 1500-1800 tube/h
- Tube diameter: Φ10-Φ50mm
- Tube length: max. 210mm
- Hopper capacity: 40 L
- Power supply:380V/220V (optional)
- Running pressure: 0.4-0.6MPa
- Motor power:1.1 kw
- Heat seal power: 3.0 kw
- Dimension: 1900(L)×850(W)×1900(H)mm
- Weight: 850kg
Aluminium Tube Filling and Sealing Machine
Introduction
RGZF-60 aluminium tube filling and sealing machine is suitable to filling and sealing of aluminum tube for medicines, food, cosmetics and daily chemical products industry, etc.Feature
A、It is suitable to filling and sealing of aluminum tube for medicines, food, cosmetics and daily chemical products industry, etc. It accurately fills pasty and viscous liquid into tube and run the follow-up process of fold sealing, printing batch number and date of manufacture, etc.B、The filling machine adopts complete close structure for automatic tube feeding and driving system.
C、Full automatic control system supports the entire process: tube feeding, tube washing, positioning, filling, folding and sealing, printing, and final product.
D、Tube feeding and washing is finished by pneumatic mode, which is accuracy and reliable.
F、It is easy to adjust and assembly.
G、It owns intelligent temperature control and cooling system, which is easy to handle.
H、There are counting and quantitative shutdown device.
I、Automatic sealing owns various mode of two-folding, three-folding and saddle-shaped folding. They are handled with different mechanical arms by the same machine.
J、All parts contacted with raw material are made of 316L stainless steel. It completely conforms to the GMP standard.
K、The safety device is functioned as overload protection, shutdown while door opening, no filling without tube feeding.
Technical parameter
- filling volume: 5ml-250ml/pcs (adjustable)
- filling accuracy: ≤±1%
- Capacity: 2400-3600pcs/h
- ALuminium tube diameter: Φ10-Φ50mm
- Aluminium tube length: max. 210mm
- Hopper volume: 40L
- Voltage: 380V/220V (optional)
- Running pressure: 0.4-0.6MPa
- Matched motor: 1.1 kw
- Overall dimension: 1900(L)×850(W)×1900(H)mm
- Weight: 850kg
