3 in 1 bottle Juice Washing Filling CappingMachine
VIDEO
Introduction
Fruit juice filling machineis used in juice and drinks filling. This machine set bottle washing, filling and sealing in one, there is temperature control can realize hot filling, the whole machine is fully automatic. the adjustment of different bottle is easy and fast. Filling type use micro pressure filling, stable and reliable.This juice bottle filling machine is controlled by advanced OMRON PLC. Bottle feeding use air convey device, bottle outlet chain is adjustable. high degree of automation, simple operation, is the preferred equipment for beverage manufacturers.
Technical parameter
Model |
CDGZ12/12/4 |
CDGZ16/16/5 |
CDGZ18/18/6 |
CDGZ24/24/8 |
Washing head |
12 |
16 |
18 |
24 |
Filling head |
12 |
16 |
18 |
24 |
Capping head |
4 |
5 |
6 |
8 |
Production capacity |
2000B/H(500ml) |
3000B/H(500ml) |
5000B/H(500ml) |
6500B/H(500ml) |
Power |
3kw |
3kw |
3kw |
4kw |
weight |
4000Kg |
4500Kg |
5000Kg |
7000Kg |
Size |
2400*1900 *2800 |
2500*1900*2200 |
2800*2050*2200 |
3100*2450*2800 |
Model |
CDGZ32/32/10 |
CDGZ40/40/12 |
CDGZ50/50/12 |
Washing head |
32 |
40 |
50 |
Filling head |
32 |
40 |
50 |
Capping head |
10 |
12 |
12 |
Production capacity |
10000B/H(500ml) |
15000B/H(500ml) |
18000B/H(500ml) |
Power |
5.5kw |
7.5kw |
11kw |
weight |
8000Kg |
9500Kg |
13000Kg |
Size |
3700*2750*2900 |
4300*3300*2900 |
5200*3700*2900 |
Features
1. Automatic interlock control the liquid level of liquid tank and material feeding.2. Two times adjust the filling capacity to ensure the precision.
3. completely eradicate the filling valve leakage, prevent contamination of bottles and equipment surfaces.
1. features of bottle washing machine
(1) adopt elastic powerful manipulator grab the bottle, turn the bottle, wash the bottle, control the bottle, turn over reduction, etc to realize automatic production.(2) Continuous tracking wash the bottle is high efficiency and stable performance.
(3) frequency control use international brand frequency transformer, speed is adjustable.
(4) Turn over manipulator with the function of location accurate, turn over freely, good sealability of the flashing valve and bottle washing intensity etc.
(5) Bottle inlet and outlet use bottle guide screw and driver plate which produced by CNC Engraving Center, it sends the bottles to the bottle inlet road track accurately, effectively solve the problem of bottle crowd, bottle lock, bottle block up and bottle damage etc.
(6) To change different bottle only need to press the lift button and change the corresponding bottle diameter dial, easy to adjust.

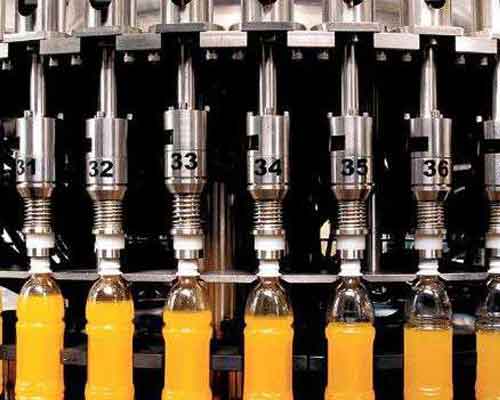

2. features of filling machine
(1) large range: automatic liquid filling machine suitable for bottle with height 250-300mm, bottle diameter 60-100mm. Filling capacity is large and easy adjust.(2) Fully compatible: All kinds of glass, porcelain, plastic, ceramic bottles and other circular containers can be fully automated operation.
(3) Accurate liquid level: filling liquid level will not with the change of the bottle capacity, filling level is consistent.
(4) No leakage: Tight and reliable sealing, no bottle no filling, damage bottle no filling.
(5) No broken bottle: use stretch bottle holding device, automatic adaptation of bottle height error, no rigid impact, and no damage to bottle.
(6) The negative pressure type filling valve is adopted, accurate liquid level, high filling speed.
3. features of capping machine
(1) The design of the structure is novel and compact, and the work is reliable.(2) Convenient maintenance, low failure, long service life of the fresh juice filling machine.
(3) The capping height could be adjustable according to the bottle height, suitable for different bottle height.
(4) No bottle no capping.
Four in one juice filling machine
Introduction
Hot juice filling machine use bottle lock drive technology to realize automatic sterilize, washing, pulp filling, juice filling and capping etc. High degree of automation. Pulp filling adopts single chamber plunger type volume filling technology, equipped with a perfect temperature control system and a reflux system and a perfect automatic cleaning system and control procedures, material contact part all use high quality stainless steel.Specification
Model | Washing head | Pulp filling heand | Juice filling head | Capping head | Filling capacity | Power |
CDNF14/12/5 | 14 | 12 | 12 | 5 | 3000-4000 | 4.5KW |
CDNF18/18/6 | 18 | 18 | 18 | 6 | 5000-7000 | 4.5KW |
CDNF24/24/8 | 24 | 24 | 24 | 8 | 8000-10000 | 6.0KW |
