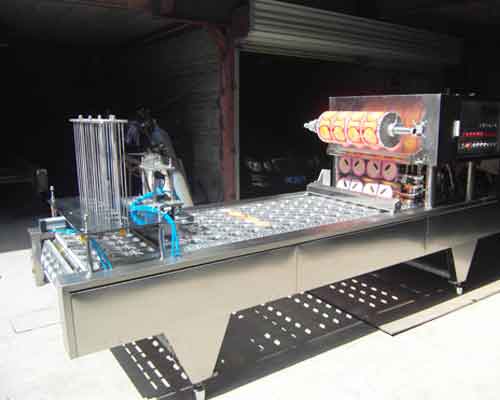

Cups filling sealing machine

VIDEO

Introduction

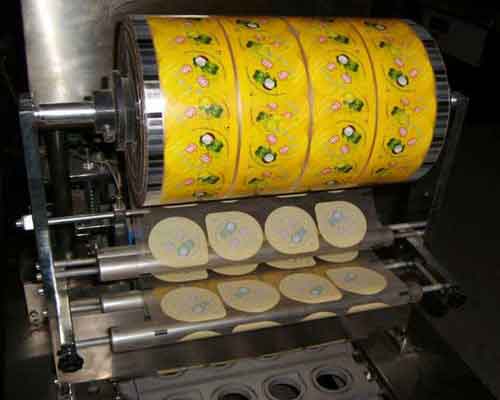

Automatic cups filling and sealing machines, use prefab film of cover, machine hand suck and put the cover, exactly quickly, wholesomely and unfailingly. Because the film of cover is as big as the mouth of cup, so the product's appearance is more beautiful.

Application:

This cups filling machine is widely used in milk, soy milk, beverages, soy sauce, vinegar, wine and other liquids film packaging, etc.

Component parts:

1.Omron PLC
2.domestic reducer
3.domestic splitter
4.domestic cylinder
5.domestic motor
6.Mindman solenoid
7.Aluminium rotary board
8.S.S. heating element
9.acid-resisting aluminium mould board
10.S.S. outside frame

Operation Work Process:

• The Operation of This Cup Filling&sealing Machine:
• Before opening the machine, put cup on the cup box shelves;
• put the material into the material storage box;

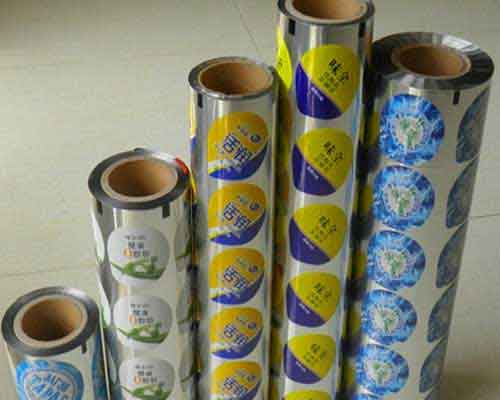

• put sealing film ready;
• put the mark on the sensor position.
• Set up parameters and functions selection on the PLC touch screen;
• set operation mode automatically;
• press the start button, and then the machine will automatically start. Conveyor belt begins to move from the cup drop. The empty cup transports to filling location to start filling. Then the cups are delivered to the sealing position and begin to seal, delivered to the cutting position, and then start cutting into individual parts until the products come out.

Characteristics:

1. High clean working environment, automatic operation, saving labor and economical.
2. Reserved for filling and cup drop and cup feed device and the expansion of the later mechanism, can be optional according to business needs,
3. This cup filling and sealing machinery use Imported Component units
4. Computer touch screen, fully display the entire production and operation of machine situation (each unit in manual/automatic operation, each unit action range settings, parameters setting, PLC motion I/O real time monitor. Production capacity and batch setting, temperature set real time monitoring and low-temperature warning, exception messages and experience).simple in operation
5. Sealing and heating part is leak proof and water proof and even short-circuits proof, high security and ensures the sealing quality and electric life expectancy
6. The whole cups filling and sealing packing machine are stainless steel, high-rigidity body strength, safety and healthy, without the risk of cleaning dirties.

Specification:
