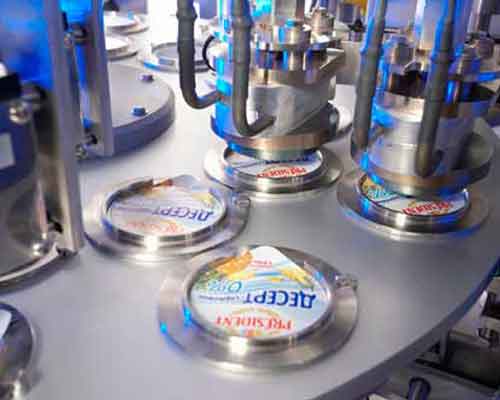

Rotary Type Cup Filling and Sealing Machine

VIDEO

Introduction

This rotary cups filling and sealing machine is specially designed for cups with rolled film or pre-cut lid products (or other kinds of liquid products, such as fruit juice, water and even granule and powder and others etc.) to be filled and sealed. Can automatic do plastic cup, and other cups according to customers demand. Our cup filling and sealing machines applied with world famous electrical and pneumatic components.
All the parts of our rotary type cups filling and sealing packing machine contact with liquid are made of stainless steel. PLC touch screen control.
This kind linear filling sealing machine works very efficiently, the capacity can be customized to meet a high capacity requirement.
This kind of cups filling and sealing machinery can deal with some big cup need high capacity; the groove of the conveyer can be made up to a dozen and more.

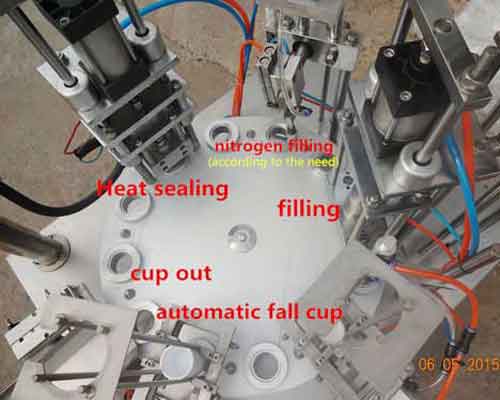

Working Process:

• Falling cups:  Cups drop down one by one automatically.
• Filling liquid or paste:  measuring filling type.
• Filling powder or granule:  measuring filling type.
• Sealing and cutting film: 0-300°c can be adjusted.
• Drop finished cups: The finished cup will be dropped. We also can configuration the conveyor.

Applications:

1. Suit for filling water, yogurt, juice, grains, peanut, coffee powder, and dry vegetable.
2. Suit for Food Areas, Drink Areas, Healthy Areas and etc.

Main Function:

1. Auto cup dropping (cups can be stacked, but can’t stick together)
2. Put the filter by hand
3. Auto filling fine coffee
4. Compact coffee
5. Auto pre-cut lids dropping
6. Automatic sealing
7. Auto cup exiting
8. Photocell

Component Parts:

• Omron PLC
• domestic reducer
• domestic splitter
• domestic cylinder
• domestic motor
• Mindman solenoid
• Aluminium rotary board
• S.S. heating element
• acid-resisting aluminium mould board
• S.S. outside frame

Specification:
