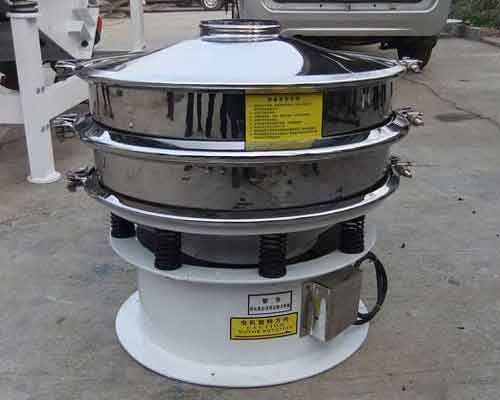

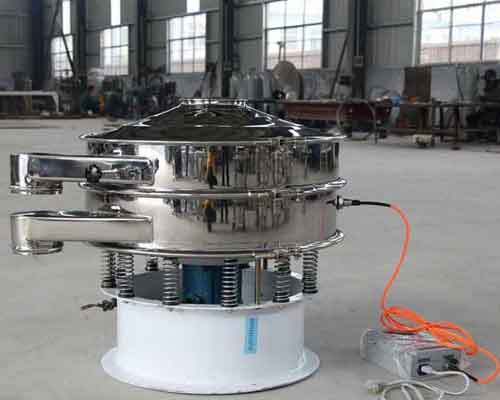

Powder Vibrating Sieving Machine

The best powder vibrating sieving machine can be applied in a wide range of materials to improve processing efficiency, improve product quality and reduce downtime....Read more

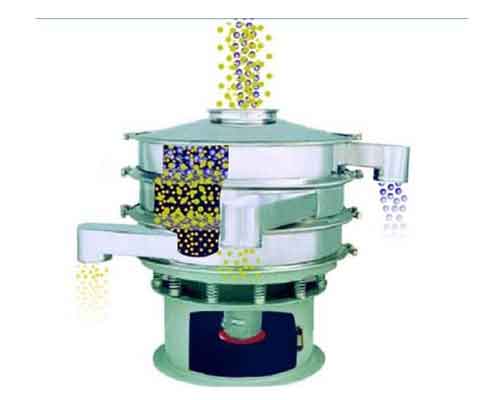

This best powder vibrating sieving machine is composed of vibration motor, sieve bottom, mesh frame, sieve chamber and rubber vibrating bowl etc. it can be operated for the sorting purpose either in single or multi layer sieves.


Compact structure, easy to operate and maintain, working smoothly, low noise, high capacity and fineness size etc.


Application Range: at powder lines, mill discharge or storage tank discharge for separation, purification, grading, refining, dedusting, filtration.
Applicable materials: Chemical industry: resin, pigment, industrial medicine, cosmetic, coatings, Chinese medicine power.
Food industry: sugar powder, starch, salt, rice noodles, milk powder, soybean milk, egg powder, sauce, syrup.
Metal, metallurgy mining industry: aluminum powder, ceruse, copper powder, ore alloy powder,
welding rod powder, dioxide manganese, electrolyze copper powder, electromagnetism materials, rubbing powder, fire-proof material, kaolin, lime, alumina, heavy calcium carbonate, quartz. Social pollution disposed; disposed oil, disposed water, disposed dye waste water, assistant detergent, active carbon.


Model Capacity (kg/h) Mesh screen (mesh) Vibration frequency (time/min) Motor power (KW) Overall dimension(mm) Weight (KG)
YS-400 100-300 50-200 1500 0.5 600×500×1100 200
YS-600 150-400 50-200 1500 0.55 800×700×1150 250
YS-800 200-800 50-200 1500 0.75 1100×950×1150 300
YS-1000 300-1500 50-200 1500 1.1 1200×1100×1250 380
YS-1200 500-3000 50-200 1500 1.5 1380×1300×1300 450
YS-1500 800-4000 50-200 1500 2.2 1760×1500×1450 600
