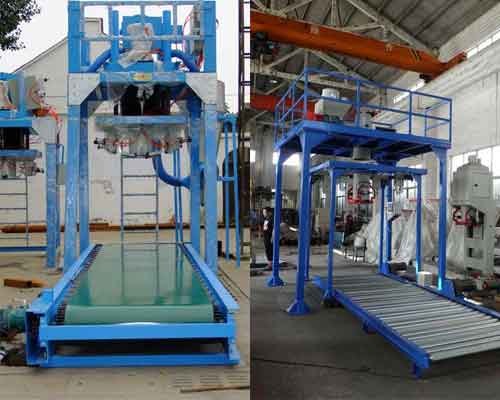

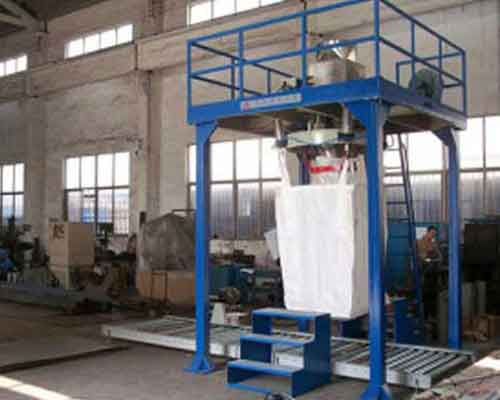

Jumbo Bag Granule Packing Machine

VIDEO

Introduction

Ton Bag granule packing machine is big heavy equipment used for packing and weighing tons of materials, it is composed by electronic weighing, automatic bags taking off, dust removing. It’s with high degree of automation, packaging and high precision. Packing speed of ton bag granule package machine can be adjusted, superb structure; unique hydraulic lifting system make it easy to deal with ton bags and convenient to handle the latter procedure. Ton Bag packing machine are suitable for materials of mineral, chemical, building, and food as well as feed industry.

Construction

1. Feeding part: Adopt two kinds (big one and small one) valves to control the three kinds feeding: fast, slow and exactness.
2. Weighing shelf: The weighing shelf connected with sensor, and convey the weight signal to the electric box which controlling the operation of the machinery.
3. The electro motion car operated by the motor and run in the track to convey the products.
The cars' position controlled by worker and the final position is determined by the limit switch.
4. Electric box: Exterior signal and the sensor signal are conveyed to the electric box, which could control the   feeding ON and OFF, cylinder lifting and the car running through finished program.

Application:

It can be used grains, fertilizer, plastic granules, etc.

Features

1. Jumbo bag granule packaging machine is designed according to granule material characteristics and customer requirements, advanced technology, durable structure and less wearing parts are needed.
2. Super bags granule packing machine can feed material and pack bags at variable speed, with stable performance and high precision.
3. Programmable electronic control system makes the control process reliable.
4. Advanced dust removing design, reduce dust pollution of working environment.
5. Weighing system uses electronic scale, set by a comprehensive panel digital calibration and parameter setting, with a total weight display and automatic peeled, auto zero, auto-correction features such as drop, high sensitivity and anti-interference ability.
6. Instrument on the super bag granule package machinery is equipped with communication interfaces for online networking; the packaging machine can be real-time monitored and network managed.
7. There is detecting device in system.
8. Processes function of automatic modifying drop height.
9. Processes function of self-test, error pilot and fault code indication.
10. With the serial interfere to communicate the computer.
11. With five-figure password to control the accumulator in system.
12. Pre-set filling number in system.

Main Structures:

1. Automatic filling system
2.Automatic weighing balance
3. Ton-bag clipper
4. Automatic belt conveyor
5. Electric control cabinet

Working flow of ton bag packing machine:

Before packing, the operator hang the 4 slings of the packing bag on the 4 lifting hooks and then cover the feeding opening of the packing machine on the sealed feeding cylinder. Then the operator starts the bag-clamping device to clamp the bag on the feeding pipe. Then, the blowing fan will blow air into bag for reshaping, and then start the feeding switch so that the packing machine will automatically go to working procedure (meanwhile the dust collection device begins to work): feeding at high or medium speed (at this time the vibrating device on the track truck is tamping the materials) —— feeding at slow speed —— stop feeding when rated weight is reached, then fall on the track truck —— be conveyed to the destination and the machine stops automatically —— be transported by the forklift or travelling crane.

Technical parameters:
