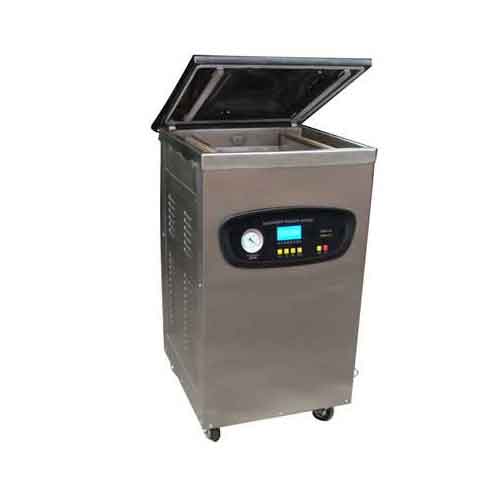

Single Chamber Vacuum Packing Machine DZY400

The feature of single vacuum packing machine is simple to operate microcomputer control system with multiple program setting options and hygienic design, easy to clean....Read more

VIDEO

Introduction

The DZY400S single chamber vacuum packing machine for food, electronics, and chemicals is widely used to automatically finish the vacuum package of products.
This vacuum sealing machine is contributed to extending the storage time of products, keeping products’ freshness and quality and preventing products from oxidization and mildew.

Application:

Single chamber vacuum sealer machine work for plastic film or plastic foil composite film packaging materials, such solid, liquid, powder, paste, paste food grain, fruit, pickles, preserved fruit, chemicals, electronic components, precision instrument table , precious metals as vacuum packaging.
Products packed by vacuum sealers can be effectively prevented from oxidation, mildew, decay, moisture, achieve quality, freshness and taste, color, and extend product shelf life merchandise.

Packing effect:

single vacuum packing machine used

Structure:

This commercial vacuum sealer packaging machine consists of plexiglass lid, electrical apparatus control system , and vacuum system.
Features:
1. Full transparent plexiglgass lid, the whole vacuum packaging process can be seen clearly.
2. PC version or LCD version can be chosen according to customers’ detailed needs.
3. Vacuum degree, sealing temperature and sealing time device are installed to guarantee the machine can work with different packing materials and different packing requirements.
4. Easy to operate and maintain and it is flexible to move the vacuum packing machine with castors.
5. Vacuum packing machine dzy 400s are ideal vacuum pack sealing machine with advanced design.

Technical parameters:

Model DZY400S
Shell(material) Stainless steel
Chamber size(mm) 420x435x70
Voltage(v/hz) 220/50 110/60
Power(kw) 0.75
Sealing length(mm) 400
Sealing width(mm) 10
Max sealing thickness(mm) 0.1-0.5
Vacuum pump rate(m3/h) 20
Sealing time range 10-20 seconds
Machine dimension(mm) 540x490x950
Net weight(kg) 100

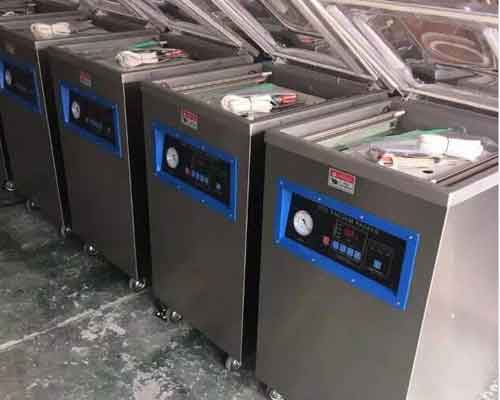

Single Vacuum Packing Machine manufacturers

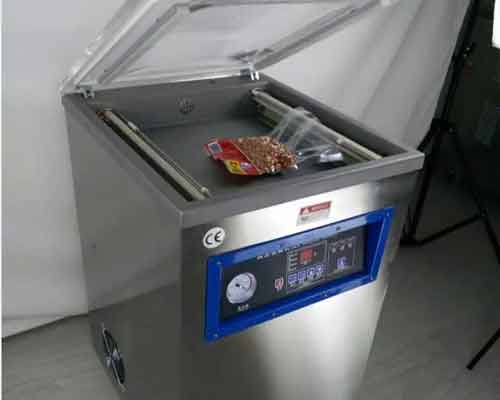

vacuum packing machine price
Single Vacuum Packing Machine for food
