automatic juice bottling equipment

The machine use PLC automatic control system with the function of compact structure, long service life of parts, convenient maintenance, simple operation and accuracy adjustment etc. wholemachine are made of high quality stainless steel....Read more

gravity flow type filling machine

VIDEO

Introduction

Automatic liner typejuice filling machine is controlled by high speed PLC to realize stepless speed regulation transportation through man - machine interface. The filling capacity can adjust arbitrary and it can match pneumatic capping device. Thisjuice filling line set machine, electric and air in one, unique design, complete function, stable performance, excellent quality, beautiful appearance.


Application

It is widely used in filling juice and drinks etc.

Features

1. Number of filling head and suck back system is designed for no leakage to ensure the production site and finished product free from pollution.
2. Siemens electrical control system, computer touch screen control panel, one key operation.
3. High precision: this fruit juice filling  machine with liquid storage tank inside, with a sensitive liquid level sensing control system to ensure the pressure in the storage tank is stable and uniform velocity,  therefore, it is easy to control the accuracy of filling capacity, and the filling error is not greater than 0.2%.
4. The height of bottle could adjust, easy, accurate and fast.
5. The filling nozzle has umbrella type and fling type to suitable for different liquid filling. Umbrella type suitable for foam liquid filling.
6. Pneumatic capping device is widely used, the capping head could adjust to suitable for different lids.
7. Stepless regulator can adjust the speed of stainless steel conveyor belt, flexibly coordinate multi process synchronization.
8. The main pneumatic and electrical components are imported parts to ensure the stable performance and high quality.
9. There is pump pressure liquid feeding function, the production capacity has been greatly improved.
10. With pause and force stop function, easy to treat emergency in any case.
11. Suitable for different bottles: when operate and change bottles the worker only need to adjust the filling valve spacing and guardrail spacing, no need any tools, very easy and fast.
12. The whole fresh juice filling machine is made of 304 stainless steel and material contact part use 316 stainless steel. Elegant appearance and reasonable structure.

Specification

Model ZDHY-4 ZDHY-8 ZDHY-12 ZDHY-16 ZDHY-20 ZDHY-24
Filling nozzle 4 8 12 16 20 24
Filling capacity Adjustable
Production capacity (B/H) 400-800 1000-1500 1800-2600 3000-3500 4200-5000 6000-8000
Filling precision ≤0.2%
Voltage 50HZ/60HZ 3N-380V 土 10%
Power 0.75KW
Air compressor 0.5-0.8MPa
Working pressure 0.6-0.7MPa

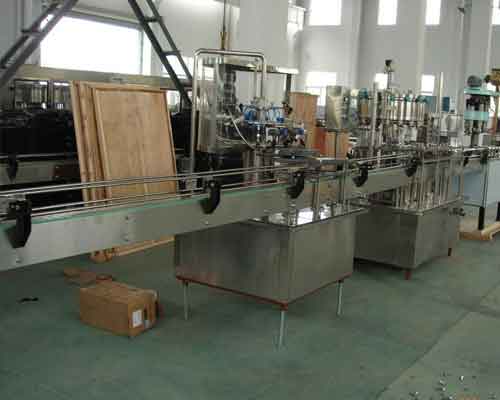

automatic juice bottling equipment

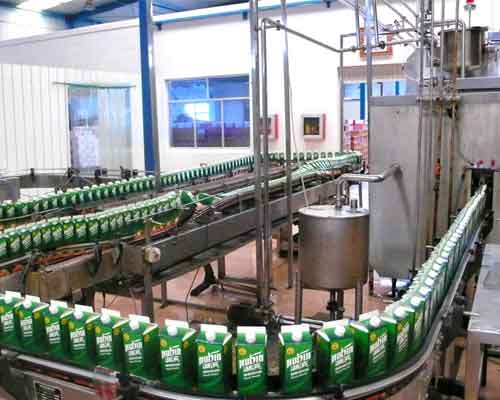

automatic juice bottling equipment

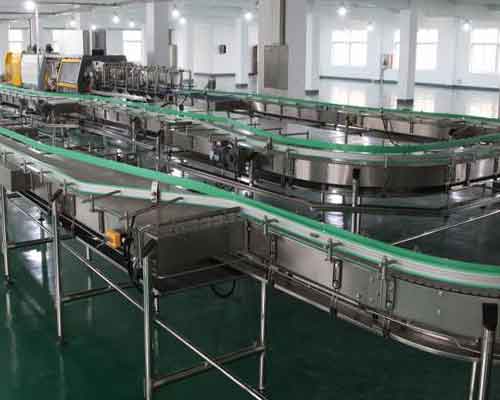

automatic juice bottling equipment
