20kg-80kg Semi-Automatic Granule Packing Machine

VIDEO

Introduction

Semi Automatic granule filling machine mainly is consist of automatic weighing, conveyor equipment, bag sealing equipment and computer control etc. four big parts. It has reasonable structure, beautiful appearance; smooth running, energy-saving and easy operation and accurate weighting etc.

Application:

This granule package machine is mainly suitable for granular, powder particles mixed, strip, and block, smoke filamentous material quantitative packaging. Such as fertilizer, feed stuff, Chinese medicine decoction pieces, traditional Chinese medicine granules, premix, washing powder, leisure small food, candy, melon seeds, peanut, salt, aginomoto, chicken essence, seeds, grain, hardware and other granular materials.

Features:

The host of this granule filling machinery uses double frequency spiral pushing, double bucket metering, advanced digital frequency conversion control technology, sample processing technology, anti-jamming technology, and realizes automatic error compensation and correction.

Working Process of packing machine:

Manual bag placing---Automatic filling---Automatic counting weight---Automatic packing---Automatic bag discharge-->Automatic convey---Sealing---Next round

Main Structures of packing machine:

1. Auto filling system

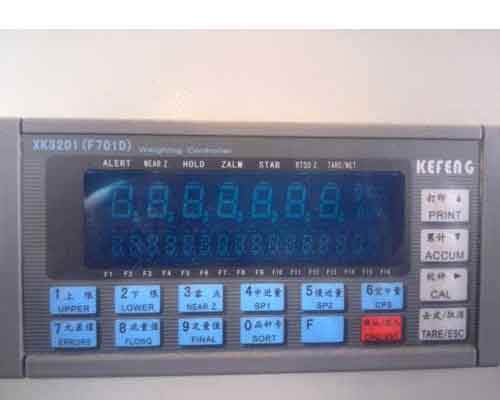

2. Auto weighting balance
3. Auto belt conveyor
4. Auto sewing machine or Auto heat sealing machine (Could be choose based on different bag materials)
5. Electric control cabinet

Main Features

1).Simple operation and environmental production
2).Its capacity is very large, and application is wide.
3).Advanced photoelectric control system.
4).It can finish measuring, sealing.
5).Using special battery and motor.
6).It is high accurate in measurement, high efficient and doesn't crush any materials.

Specification:

• Model: DCS-YA50-ZZ
• Weighing Range:20kg-80kg
• Packing Speed: 180-240 bags/hour
• Precision: ±0.2%FS
• Power:2.2KW
• Electrical Power: AC380/220,50/60(V/Hz), 3/1 phase, made as per requirement
• Air Source Pressure: 0.4-0.6Mpa
• Weight: 700kg
• Dimension3000*1000*2800mm
• Length of belt conveyor: 3000mm
• Width of belt conveyor: 400mm
