50g-2kg Semi-Automatic Granule Packing Machine

VIDEO

Introduction

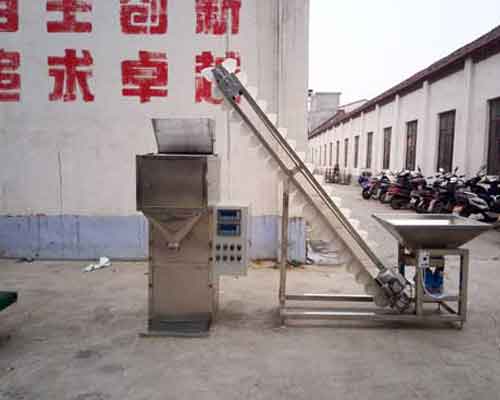

This is a semi-automatic granule packing machine can pack corns, wheat, barley, and other grains, besides, it can also pack tea, buttons, rice, seeds and other particles, in addition, our packing machine is also can be used for packing flour and other powders.
You can choose use one vibrator or two vibrators. This model of granule packaging machine is mainly discharges materials by vibrator, so one vibrator is a little slow, but if you use two vibrators, it will be more quickly.
The granule filling machines must be kept clean, machine oil, liquid medicine is not or glass beads, lest cause corrosion damage to the machine, it must:
1. In the process of production, timely removal solution or glass beads.
2. Thrown scrub once a week, especially in common use were not easy to wipe clean the place or with compressed air blowing off.

Application:

This granule filler has a widely usage, it can be used in many industries: Fine powder, like flour, milk powder, wall powder, chemical powder, edible powder, coffee powder, the powder, coarse, granular, herbs, seeds, food, sesame seeds, grains, wolfberry, rice, MSG, salt suitable items, spices, beans, chemical components, electronic components, hardware components, because too much can be divided into the shop loaded items only briefly.

Advantages:

The granule package machines have the advantage s of reasonable design, reliable performance, long and durable life time, filling precisely and convenient use and maintenance, etc.

Features:

1. Feeding method: vibrate;

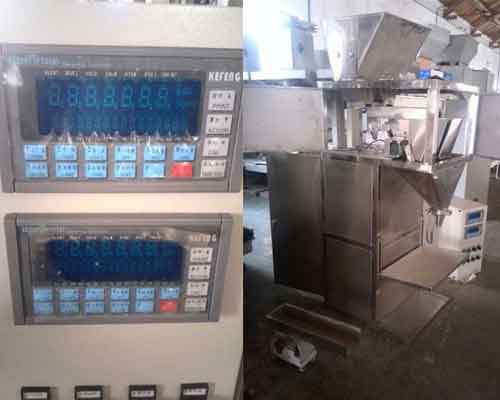

2. Electronic measurement, artificial, bagging;
3. Packing specification, two scales takes weight range;
4. Weighing precision has nothing with specific gravity;
5. Packing specification could be continuous adjusted;
6. Activity type masks, weighing up the card of mouth;
7. Serial interface, RS485 computer networking;

Technical parameters:

• Model: DCS-YB5
• Power:0.6KW
• Weight: 300kg
• Precision: ±0.2%FS
• Weighing Range: 50g-2000g
• Packing Speed: 480-720 bags/hour
• Air Source Pressure: 0.4-0.6Mpa
• Dimension: 600*600*1850mm
• Electrical Power: AC380/220,50/60(V/Hz), 3/1 phase, made as per requirement
• Packaging container: Aluminum foil bag, plastic bag, paper bag, bottle, etc
