Potato Packing Machine

VIDEO

Introduction

Feeding device: potato packing machines adopts intelligent material feeding structure, via computer transducer or reducing motor control module, to realize the fast and slow speed feeding. And, according to different materials, you can adjust the feeding speed by adjusting the transducer (no interference). The maximum adjustment range is 100%. Meanwhile, if also adjust the parameter setting, it could achieve the best optimal proportion of fast and slow speed feeding and ensure to increase the packing speed and keep good accuracy.
Bag clamping device：This potato package machine adopts pneumatic clamping device and consists of annular bag clamping bucket, clamping system, executive device and bag placing signal. And the annular bag clamping bucket installed with air return way. If there’s dust during filling into bag, in the outlet, it could equip trumpet shaped air suction hood and connect with the factory dust-collect system to improve the workers’ working environment.
Weighing system：the potato packaging machinery adopts USA Sensors Systems, IL series weighing load cells which with high accuracy, durability, steady working, and impact resistance. They are matched with sole drive connection structure to fix them with the bag clamping device and weighing system.
Weighing control unit: It includes weighing control cabin, electromagnetic valve, proximity switch, weighing terminal with PANTHER, programmed weighing controller, isolation transformer, power supply switch and relative components. It’s the brain of the packing machine working.

Application:

Potato packing machinery can pack many materials such as potato, onions, garlic, coal, briquette, ore, and organic vitreous and so on. The machine has strong structure, stable and reliable performance, especially for packing potatoes and onions in agricultural sector, coal, ore and other large continuous weighing ball materials in mining industry.

Main structure:

1.Auto filling system (Multi-speed Inclined belt feeder)
2.Auto weighting balance
3.Auto belt conveyor
4.Sewing machine (GK35-2C)

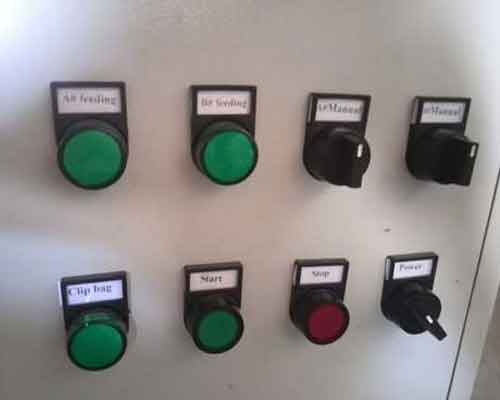

5.Electronic control cabinet and Computer Control cabinet

Operation Process:

Manual bag placing-->Auto filling-->Auto weighing-->Auto bag discharge-->Auto bag conveyor--> Bag sewed -->Next round

Technical parameters:

• Model: DCS-YA50-PD
• Weighing Range:20kg-80kg
• Packing Speed: 120-240 bags/hour
• Precision: ±0.2%FS
• Power:2.2KW
• Electrical Power: AC380/220,50/60(V/Hz), 3/1 phase, made as per requirement
• Air Source Pressure: 0.4-0.6Mpa
• Weight: 700kg
