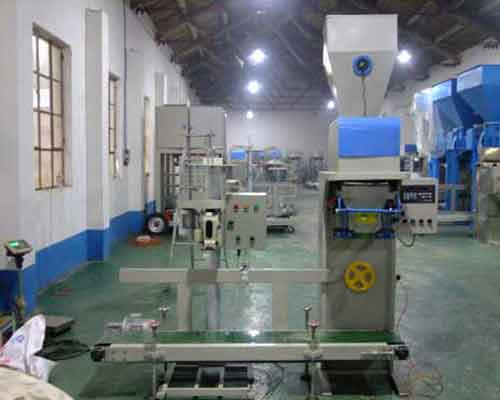

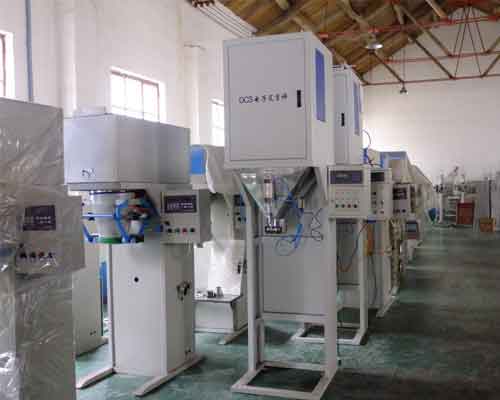

10kg-50kg Semi-Automatic Powder Packing Machine

VIDEO

Introduction

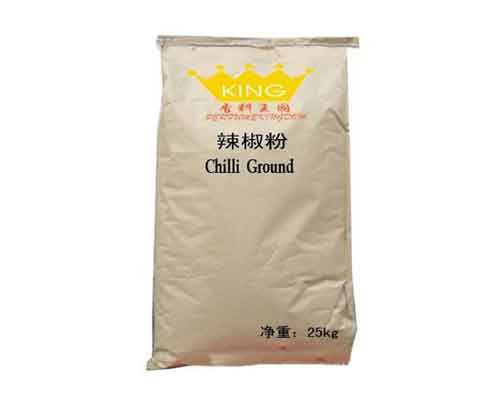

This semi-automatic powder packing machines is especially designed for packing 10kg-50kg powder of bad mobility, such as feed, fertilizers, rubber powder, PE powder, etc. into open-mouth bags like plastic woven bags, Kraft bags, sacks, paper-plastic compound bags and barrels, cartons.
DCS-YA25 powder packing machines is especially suitable for the manual filling of small production quantities. Packing machines with low production outputs do not normally require fully automatic packing systems. Even so they still demand precise filling of their products.

Application:

DCS-YA25 semi-automatic powder packaging machinery is mostly designed for: flour, milk powder, protein powder, yeast, coffee powder, granular additives, enzymes, solid medicine powder, powder, fuel powder, flavors, fragrances, allspice, pesticides, veterinary drugs powder, chemicals, and food seasoning ingredients and so on.

Working Process:

Manually bag placing → Automatic filling → Automatic weighing → Automatic conveying → Automatic sealing (sewing, heating or weld) → next process

Features:

1. Clean bag filling
Due to product-specially chosen filling spout with all-side clamping jaws
2.Space saving
Due to compact machine design
3.Cost saving
Due to stable operation and low maintenance costs
4.Easy handling
Due to easy and intuitive operational menu with “weight input” “weight display” “time display”
Due to clear operator guidance, easy cleaning and maintenance
5.High weight accuracy: ±0.2%FS
Due to coarse and fine flow filling controlled by one frequency-change screw’s (auger’s) rotating speed.
Due to the use of the Canadian General Measure or METTLER TOLEDO weighing controller and OMISEO (USA) load cell sensors
6.Good product protection
Due to project-specially selected bag closure, e.g. sewing, welding or hot-melt sealing
7.  Optional device:
Dust removal device. The working environment will be more hygienic if the dust removal device is added.

Advantages:

1. Touch screen control box and the screen of powder fillers with dual language.
2. Set up the production parameters by yourselves.
3. Records of production and number of packages.
4. Sewing machine automatically disconnects.
5. Three-level feeding , high weighing accuracy and fast weighing speed .
6. Reasonable design and easy to maintain: one more door structure , easy to clean and maintain.
9. Our product contains PLC controller, Cylinder, frequency conversion controller, weighing control instrument, sensors used international brand, such as OMRON, AIRTAC, DELTA, CHIMEI and so on.
10. We can provide our customer with integral packaging system design.

Structure:

The powder packaging machines are mainly composed of the following parts:
1. Automatic quantity-fixed balance
2. Automatic bag-supplying and weighing filling section
3. Optional section such as air compressor
4. Automatic bag-clamped section
5. Automatic belt conveyor
6. Automatic sewing or sealing machine
7. Automatic bag-backwards section
8. Automatic robot palletizing machine for option
9. Automatic online pallet stretch wrapping machine for option
10. Electrical PLC instrument control cabinet
