Application:
- Suitable for metering of all kinds of granule, flake, strip, round and irregular products such as sunflower seeds, peanuts, coffee beans, chocolate, nuts, dried fruit, apple chips, banana chips, potato chips, biscuit, candy, fruit, vegetable salad, noodles, quick-frozen food, puffed food, pet food, seed, hardware and plastic granule.
- Suitable for bag type such as Back sealing pillow bag, gusset bag, 4 sides sealing bag, 3 sides sealing bag

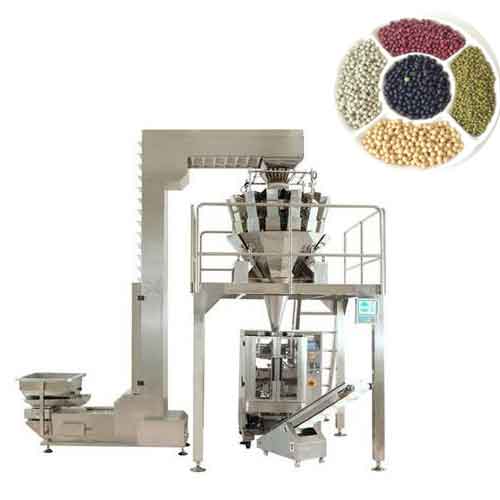

- The machine unit consists of Multi-heads Weigher and vertical packing machine.
Technical parameters:
- Model: YV-260
- Bag Type: Pillow bag, Gusseted bag/Flat bottom bag
- Operation Mode: ntermittent
- Measuring range: 10-2000g
- Measurement accuracy: 0.2％
- Speed: Up to 50bags/min
- Bag Length: 50-340mm
- Bag Width: 80-250mm
- Reel Film Width: 540mm
- Film Thickness: 0.04-0.12mm
- Packing material outer diameter: Ф450mm
- Packaging materials Neijin: Ф75mm
- Voltage AC 220V/ 50HZ,1phase or per customer needs
- Power Consumption:5.5KW
- Compressed Air Requirement :0.6MPa,0.36 M3 / Min
- Dimension(L X W X H):2265 X 2536 X 3200mm
- Weight:1700KG
