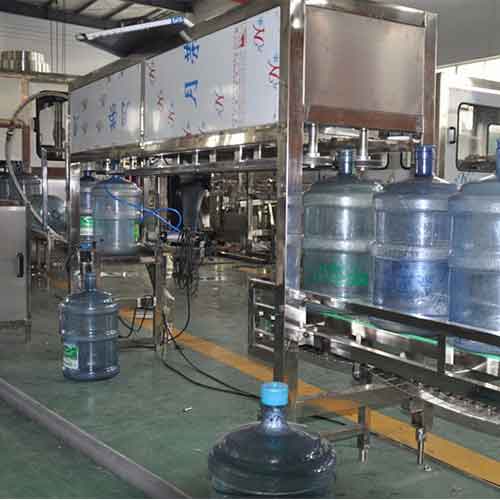

Automtic 5 Gallon Water Filling Machine

1) Automtic 5 Gallon Water Filling Machine Summry:

NT series 5 gallon filling machine is designed for producing 5 gallon barrel drinking water. There are 8 kinds of machines which can produce 60, 100, 150, 300, 450, 900, 1200 and 2000 5 gallon barrel drinking water per hour. Every machine is consisted of rinser, filler and capper. The rinser has several sprays which can be used as for both clean water rinsing and disinfectant rinsing. The disinfectant can be recycled. The machine also has automatic capping device, and cap rinsing device. The whole production line can automatic feeding barrel, rinsing, sterilizing, filling, capping, counting and output.

2) Automtic 5 Gallon Water Filling Machine Technique Parameter

Model	NT-120	NT-300	NT-450	NT-600	NT-900	NT-1200
Filling head qty	1	2	3	4	6	8
Volume	3gal or 5gal	3gal or 5gal	3gal or 5gal	3gal or 5gal	3gal or 5gal	3gal or 5gal
Dimension	Φ240430 Φ270490	Φ240430 Φ270490	Φ240430 Φ270490	Φ240430 Φ270490	Φ240430 Φ270490	Φ240430 Φ270490
Capacity	120	300	450	600	900	1200
Air supply pressure	0.4-0.6	0.4-0.6	0.4-0.6	0.6	0.6	0.6
Air consumption	0.37	0.6	0.8	1	1.5	1.8
Power	1.38	3.8	3.8	7.5	9.75	13.5
Weight	680	1500	2100	3000	3500	4500
