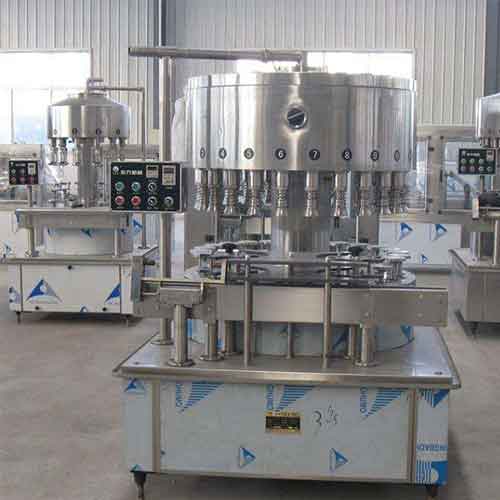

High Quality Glass Bottle Liquor Bottle Filling Machine

This New design  glass bottle liquor bottle filling machine is mainly used in washing, filling and capping liquor wine into glass bottle .The glass bottle filling machine is based on the introduction of foreign technology, combined with our years of manufacturing experience. The glass bottle liquor filling machine combines filling and capping, with scientific and rational design, beautiful shape. It is Easy in maintenance, with high automation.
1. It is a automatic washing filling & capping machine.
2.With high precision me chanical filling valves,our filling machine stops vacuumizing when there are no bottles.
3.This machine is equipped with external mechanical valve,inside which there is no spring or sealing element.
4. The glass bottle liquor bottling machine makes use of combined transmission by open gear and gearbox,and adopts frequency conversion stepless speed control,extending the speed modulating scope.
5. It has an antomatic lubricating device so that the lubrication points can be automatically lubricated regularly in time.Also,our glass bottle filling machine has high transmission efficiency,low noise and long life.
6. In case of the blowout due to poor quality of the bottles during liquor or wine filling,the filling valve will automatically close and the auto-cleaning device will work to treat the broken bottles.
7.The capper has the function of automatic deloading,which helps lower the bottle breakage.


Technology data

• Model  18-18-6
• The heads of washing, filling and capping 18-18-6
• Capacity(bph):(500ml/bottle)5000-6000
• Power(kw)Total motor 5kw
• Dimensions (mm)(LxWxH)2250x1670x2200
• Weight(kg)3500

Rinsing part

• Rotative rinsing turret one treatment, fixed nozzles, with grippers.
• The grippers take the bottles from the inlet starwheel while they are still driven by the starwheel, thus guaranteeing a safe grip.
• After the gripping, the bottle is turned upside down and centred above a spraying nozzle which directs a stream of rinse water into the bottle. After the draining period the bottle is turned over to an upright position again.

Glass Bottle Liquor Filling part

• The starwheels drive the bottles always by the neck through the rinsing, filling and capping steps. For the various types of bottle, it is easy to adjust the structure for the operator by our specialized design.
• The filling valves are fully made of stainless steel with food grade, sterilization-resisting plastic gaskets. The valves are secured to the bowl and allow easy assembly and disassembly.

Capping part

• Rotative capping turrent, suitable to the application of aluminum screw cap or metal crown caps on glass bottles
• The fixed part consists of the cap hopper, the cap feeder with relevant motor and the cam actuating the capping heads.
• The wine filling machine heads are raised and lowered by the action of a follower that is riding on a shaped cam

Packaging & Shipping

 We can also supply you the whole beverage line from water treatment to final pacinking,glass bottle liquor bottle filling line. With high machine quality and good service, we are your best choice
